j.c Edge Lift Anchor manufacturer from China Qingdao Jianchang Industry Trade Co., Ltd.

Price:	0.1 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: carton/cartons

Production Capacity: 10000000piece/month

1) product name:Edge Lift Anchor
2) complete range of sizes
3) other sizes on request

Specification:

1) product name:Edge Lift Anchor
2) complete range of sizes
3) other sizes on request

Lift Anchor
Size: 1.3T 2.5T 4T 5T 7.5T 10T 15T 20T 32T
Description: We specialized in producing lift hardware to lift and handle precast concrete elements series.
The lift anchor is hot forged from Manganese steel. The formed head provides spherical seating that the Lifting Eye engages, while a disc-shaped foot is embedded in the concrete. Due to its being a forged part, the lift anchor does not depend on welds or thread engagement to develop its safe working load. Forging provides maximum safety with its advantageous material structure. This allows the anchor to easily meet the OSHA requirement of a 4 to 1 factor of safety.In addition to the Manganese steel anchors, Type 304 or 316 Stainless Steel lift anchors are available on special order. Use stainless steel anchors when maximum protection against corrosion is required.

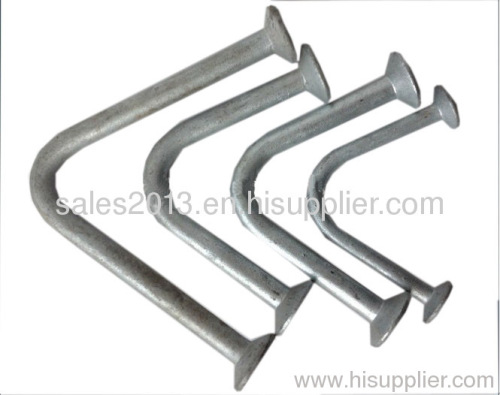

Edge Lift Anchor

Part No.	Size	Description	Weight(kg)	Quantity/ Bag
JCE001	12V--80	Plain/H.D.G	0.220	50
JCE002	12V--95	Plain/H.D.G	0.250	50
JCE003	12V--120	Plain/H.D.G	0.300	50
JCE004	12V--170	Plain/H.D.G	0.400	25
JCE005	17V--80	Plain/H.D.G	0.450	25
JCE006	17V--95	Plain/H.D.G	0.510	25
JCE007	17V-110	Plain/H.D.G	0.600	25
JCE008	17V--120	Plain/H.D.G	0.610	25
JCE009	17V-150	Plain/H.D.G	0.780	15
JCE010	17V--170	Plain/H.D.G	0.800	15
